installation instructions for Xforce Varex Mufflers

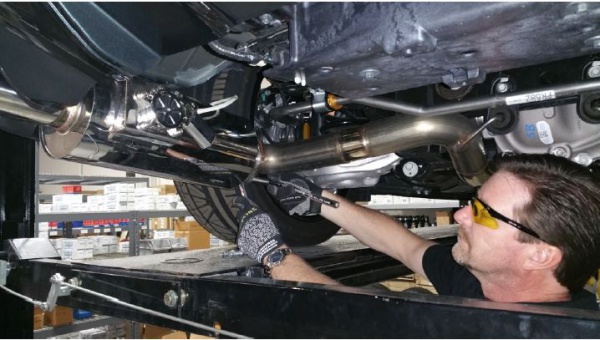

After removal of the stock muffler, install the Varex muffler in the reverse order. Be sure to use the included muffler band once it has an exhaust hanger welded to it by the professional mechanic (if needed). The Varex muffler can be rotated in any direction to gain better clearance. Make sure to properly tighten all flange bolts.

Installation of Xforce Varex Universal Muffler

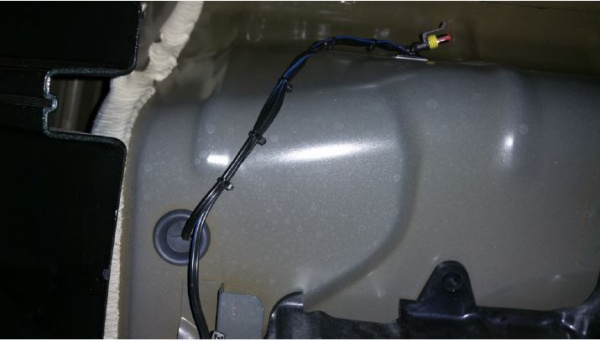

Once the muffler is mounted, begin routing the wire harness utilizing the spare wheel  drain hole. The harness can then be connected to the Varex motor harness at this time.

Installation of Xforce Varex Universal Muffler

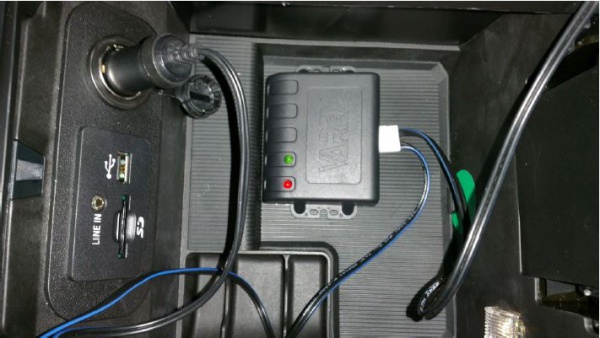

The other end of the wire harness can be run through the interior of the car and connected to the control harness. The control harness can either be mounted in the cabin or safely stowed in the center council (see pic).

Installation of Xforce Varex Universal Muffler

Connect the power plug to the in car 12 volt accessory outlet or cigarette lighter socket. Turn the vehicles AC power on to test the control unit. The green light on the control unit should light up when the buttons on the remote control are pressed. Next, with the power on, go to the rear of the vehicle and visually check that the valve(s) can open and close by operating the remote control. Your installation is complete.
